Industrial Grade LED Rope Lighting Solutions
HX via it global distribution network provides LED rope lighting engineered for heavy industrial environments world-wide.
•
24,36,48v AC and DC LED rope lighting
•
IP65/67 rated power supplies
•
Various accessories to complete an installation
Do you have a specific requirement?
Reach out and let's see how we can assist you!
INDUSTRIAL | FUNCTIONAL | RELIABLE
LED Rope Lighting
Our Industrial LED rope lighting has three ranges. Each one solves a specific need.
Select a light, choose a suitable power supply plus any accessories you require.
Standard Series
The Standard Series is the core of the HX LED rope lighting line: 6,500 K cool white rope light pre made up in lengths of 5 m (16 ft), 10 m (33 ft) and 20 m (66 ft) and cuttable on site to suit the exact meterage required.
It is a low profile, lightweight strip making it easy to carry and install. a popular light used in mining, construction sites, confined spaces, parking lots and data centres. Being low profile means it is out of the way and less likely to get damaged. In the event it is damaged this rope light can be cut and repaired on site.
•
Two series, 1000 and 500, each with 24, 36 or 48 V DC options.
•
The 1000 series is our brightest (1,000 lumens per meter) at 9 W per metre (2.7 W per foot).
•
The 500 series suits areas demanding less light (500 lumens per meter) at 4.5 W per metre (1.4 W per foot), and spans longer distances between power supplies.
•
Runs of 20 to 35 m (66 to 115 ft) from a single power feed and 40 to 70 m (131 to 230 ft) using a dual power feed.
Select the brightness you need, then the required voltage and run length required:
1,125
lumens per metre
343 lm per foot
Power
9 W per metre
(2.7 W per foot)
Available lengths
5m, 10m, 20m Rolls
(Cuttable)
Rating
IP67
Temperature
6,500 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
562.5
lumens per metre
171 lm per foot
Power
4.5 W per metre
(1.4 W per foot)
Available lengths
5m, 10m, 20m Rolls
(Cuttable)
Rating
IP67
Temperature
6,500 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
For longer runs, see the Ultra Long series below:
Ultra Long Series
The Ultra Long Series is the toughest of the HX LED rope lighting that can go extra long distances between power supplies. 6,500 K cool white rope light made up in pre made up lengths of 5 m (16 ft), 10 m (33 ft) and 20 m (66 ft) and this cannot be cut, modified or repaired on site.
It is typically used in long tunnels, mining, construction sites, maintenance work in confined spaces, conveyors, processing plants, draglines, escape tunnels, utility areas (water & dams) etc.
The Ultra Long Series LED Rope Lighting is built for any area needing continuous area lighting over long distances. The run off 48 V DC supplies and IP67 and IK10 rated.
•
The HX-UL-870-48vDC-S gives 870 lumens per metre (265 lm per foot) at 9 W per metre (2.7 W per foot), and runs 120 m (394 ft) on a single feed or 240 m (787 ft) on a dual feed.
•
The HX-UL-490-48vDC-S gives 490 lumens per metre (149 lm per foot) at 5 W per metre (1.5 W per foot), and runs 160 m (525 ft) on a single feed or 320 m (1,050 ft) on a dual power feed.
•
With power fed from both ends, a long route needs fewer power points.
•
Best suited to tunnels, long conveyors and service corridors.
Select the brightness you need, then the required voltage and run length required:
490
lumens per metre
149 lm per foot
Power
5 W per metre
(1.5 W per foot)
Available lengths
5m, 10m, 20m Rolls
(Not Cuttable)
Rating
IP67
Temperature
5,700 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
870
lumens per metre
265 lm per foot
Power
9 W per metre
(2.7 W per foot)
Available lengths
5m, 10m, 20m Rolls
(Not Cuttable)
Rating
IP67
Temperature
5,700 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
For custom runs, see the Custom series below.
Custom Series
The Custom Range is the HX LED rope lighting you can order to the exact length you need, or simply get an entire 40 or 100m roll with extra snap end connectors and cut the rope lighting to the length you require on site, as needed.
The lighting will still be IP67 and IK10 rated and provided they are cut and installed correctly still carry our full 5 year warranty.
•
Choose the 750 series on 24 V DC, or the 1000 series on 24 or 36 V DC.
•
The 750 series draws 7.2 W per metre (2.2 W per foot) provides 750 lumens per metre (229 lm per foot).
•
The 1000 series provides 1,000 lumens per metre (305 lm per foot).
•
On a dual power feed, the 750 series runs up to 50 m (164 ft), and the 1000 series runs 40 m (131 ft) at 24 V or 42 m (138 ft) at 36 V.
•
Order the exact lengths for each area you are lighting. Or just buy in bulk and cut them to size on-site.
Select the brightness you need, then the required voltage and run length required
750
lumens per metre
229 lm per foot
Power
7.2 W per metre
(2.2 W per foot)
Available lengths
Fully Customizable
Rating
IP67
Temperature
6,500 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
1,000
lumens per metre
305 lm per foot
Power
12 W per metre
(3.7 W per foot)
Available lengths
Fully Customizable
Rating
IP67
Temperature
6,500 Kelvin
Casing
Silicone - Lotus Clean Dust Retardant & Waterproof
LED rope lighting power supplies
HX power supplies are single-output units that run HX LED rope lighting, from 320 W to 1,200 W.
•
The HX 320-48V is adjustable to 24, 36 or 48 V DC and delivers up to 320 W.
•
The HX 800-48V is a 48 V DC unit rated up to 800 W; it gives 600 W below 176 V AC input.
•
The HX 1200W-48VDC is a 48 V DC unit rated at 1,200 W; it needs 180 V AC input or more.
•
All three are IP66 and IP67 rated.
•
For backup on short runs, the HX Emergency Lighting Backup Controller has a 24 V DC output, a 10 W battery output and at least 120 minutes of backup, with IP65 protection.
Choose the supply by the voltage of your rope and the total power of your run: watts per metre multiplied by length.
LED rope lighting accessories
HX accessories help you mount, connect, seal and repair LED rope lighting runs.
•
The Magnetic Light and Cable Holder fixes to steel without drilling, which suits temporary lighting.
•
The uPVC Channel gives a fixed mounting in 500, 1000 and 2000 mm (19.7, 39.4 and 78.7 in) lengths.
•
The Front Connector brings power in through a 3 m (9.8 ft) lead. It is IP67 rated and fitted in the field.
•
The Snap End Cap seals the end of a run. It is IP67 rated and fitted in the field.
•
The 3 Way T Connector splits a run three ways from one supply.
•
The Bend Kit turns corners the rope cannot bend round on its own.
•
The Repair Kit rejoins cut rope at the marked cut points.
Choose the parts your run needs, then send an enquiry if you want help matching them.
Standard/Custom Range Accessories
All parts pair up with Standard/Custom Range
01
Magnetic Light and Cable Holder
Steel-mount holder that fixes without drilling.
02
Front Connector for HX Rope Light
IP67 power-in connector with a 3 m (9.8 ft) lead, fitted in the field.
03
Snap End Cap
IP67 end cap that seals the end of a run, fitted in the field.
04
HX Rope Light Repair Kit
Rejoins a cut strip at the marked cut points.

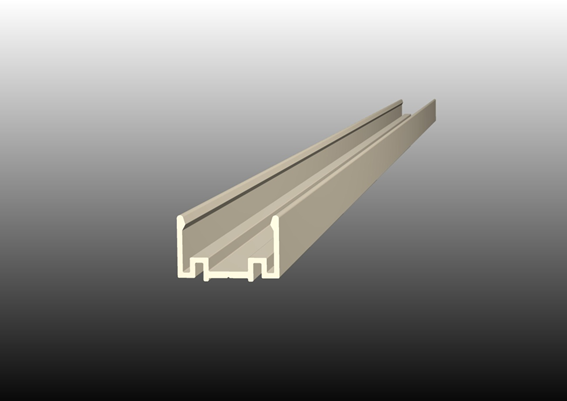

05
uPVC Channel
17 mm by 8.8 mm (0.67 in by 0.35 in) channel for fixed mounting, in 500, 1000 and 2000 mm (19.7, 39.4 and 78.7 in) lengths.
06
Bend Kit
Two IP67 snap connectors and a 260 mm (10.2 in) cable for 12 to 48 V runs, for turning corners.
07
3 Way T Connector
Splits a run three ways from one supply.
Ultra Long Range Accessories
All parts pair up with Ultra Long Range
01
Magnetic Light and Cable Holder
Steel-mount holder that fixes without drilling.
Frequently asked questions
1
How do I choose between Standard, Ultra Long and Custom Range?
Choose by run length first, then brightness. The Standard Range suits runs up to 70 m: pick the 1000 series for more light, or the 500 series for lower power per metre and a longer run at the same voltage. The Ultra Long Range suits one long run, up to 320 m with a dual feed, when maximum brightness matters less. Send an enquiry if you would like help choosing.
2
Why does rope designed for shorter runs give more light?
Voltage drops along a rope light, and the more power the rope draws per metre, the sooner the voltage falls too low. At the same supply voltage, rope designed for a shorter run can draw more power per metre, so it gives more light. Rope designed for a longer run draws less power per metre, so it gives less light but reaches further. At 24 V DC, the 1000 series draws 9 W per metre and runs 40 m on a dual feed. The 500 series draws 4.5 W per metre, gives less light and runs 60 m.
3
How do I choose between 24, 36 and 48 V?
Match the rope’s voltage to your power supply, then check the run lengths for the rope you choose. Moving from 24 V to 36 or 48 V lengthens the run: the 1000 series reaches 60 m on a dual feed at 36 V DC or 48 V DC, against 40 m at 24 V DC. The HX 320-48V power supply is adjustable to 24, 36 or 48 V DC. The HX 800-48V and HX 1200W-48VDC are 48 V only, so choose 48 V rope if you plan to use them. Check that the supply’s wattage covers the whole run.
4
What advantage does a dual feed give over a single feed?
A dual feed powers the rope from both ends, using two power supplies instead of one. That lets a run go twice as far. For example, the 1000 series at 24 V DC runs 20 m on a single feed and 40 m on a dual feed. The trade-off is that you need a second power supply.
5
Can the length of HX LED rope lighting be customised?
Yes. You can order the lengths you need for the area you are lighting. You can also buy a whole roll with spare connectors and cut it to length on site. Send an enquiry with your run lengths.
6
What is HX LED rope lighting made of?
HX LED rope lighting has its LEDs sealed in a silicone casing and is IP67 rated: dust-tight and protected against temporary immersion.
7
Does HX LED rope lighting come in different colours?
es. HX LED rope lighting is available in white, red, green, blue and amber. HX also offers a 24 V chasing and pulsating range for directional and warning purposes. Send an enquiry to ask about colour options for your project.
8
How much brightness do we need?
How much light you need depends on the job. Lighting that marks an edge, a walkway or an escape route needs far less than lighting that lets people work on a task. Think about the mounting height, the ambient light and how far apart the light sources can be. At the same voltage, more light per metre means more power per metre and a shorter run, so choose the brightness you need first, then the voltage and run length. The 1000 series is the brightest in the Standard Range, the 500 series uses less power, and the Ultra Long Range trades brightness for distance. Send an enquiry with your application, run length and mounting height.
Not sure which LED rope lighting fits your project?
Tell us your application, run length, supply voltage and where power can feed in, plus any products you are considering.
